173M - Single Swivel Combination Male Part (Self Colour)
Single lugged fitting. Dependent on load requirements, this fitting may sometimes be used to fix flat sheets to tubes. The tube cannot be joined within the fitting.
This fitting is not designed to withstand lateral loading.
Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.
Please note that these fittings are bare metal and will be naturally prone to rusting unless a protective coating such as a lacquer is applied.

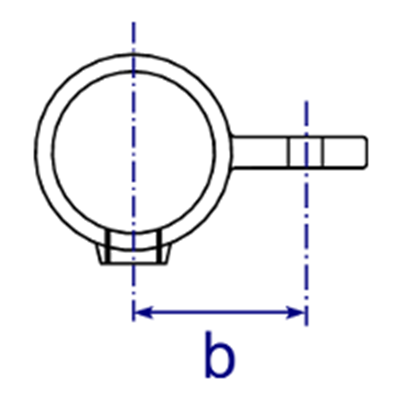

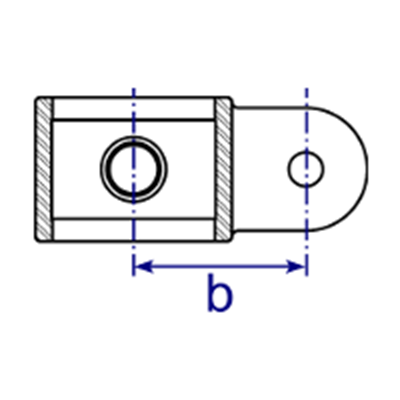

Product Data & Dimensions
| Size | b (mm) | Weight (kg) | Box Qty* |
| B34 | 43.5 | 0.26 | 150 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
