253 - Pendiente corta Tee (11°-29°)

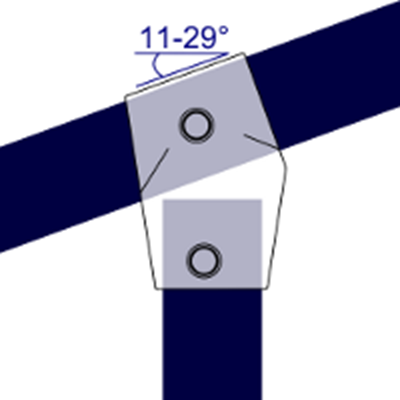

Junta a tope para sitios inclinados, ajustable de 11 ° a 29 °, a menudo se utiliza para unir los montantes intermedios a los rieles superiores y los rieles medios para terminar los montantes. Este Interclamp® no se puede usar donde el tubo pasante (inclinado en la foto) debe unirse dentro del accesorio. El tipo 255 se puede usar a menudo como una alternativa.
Consulte también nuestra gama de accesorios de lavado Interclamp® Assist para ayudar a cumplir con la Ley de Discriminación por Discapacidad (DDA) y el Reglamento de Construcción Parte M: 2004.

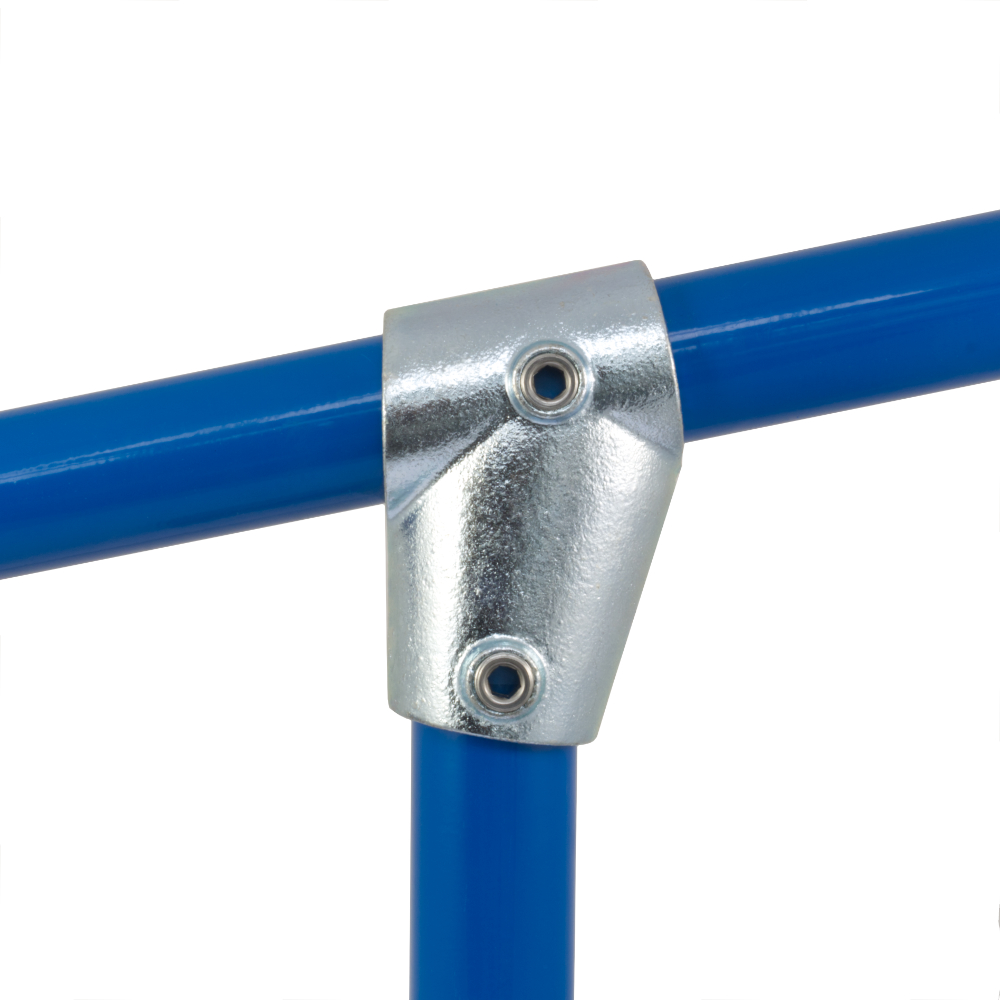

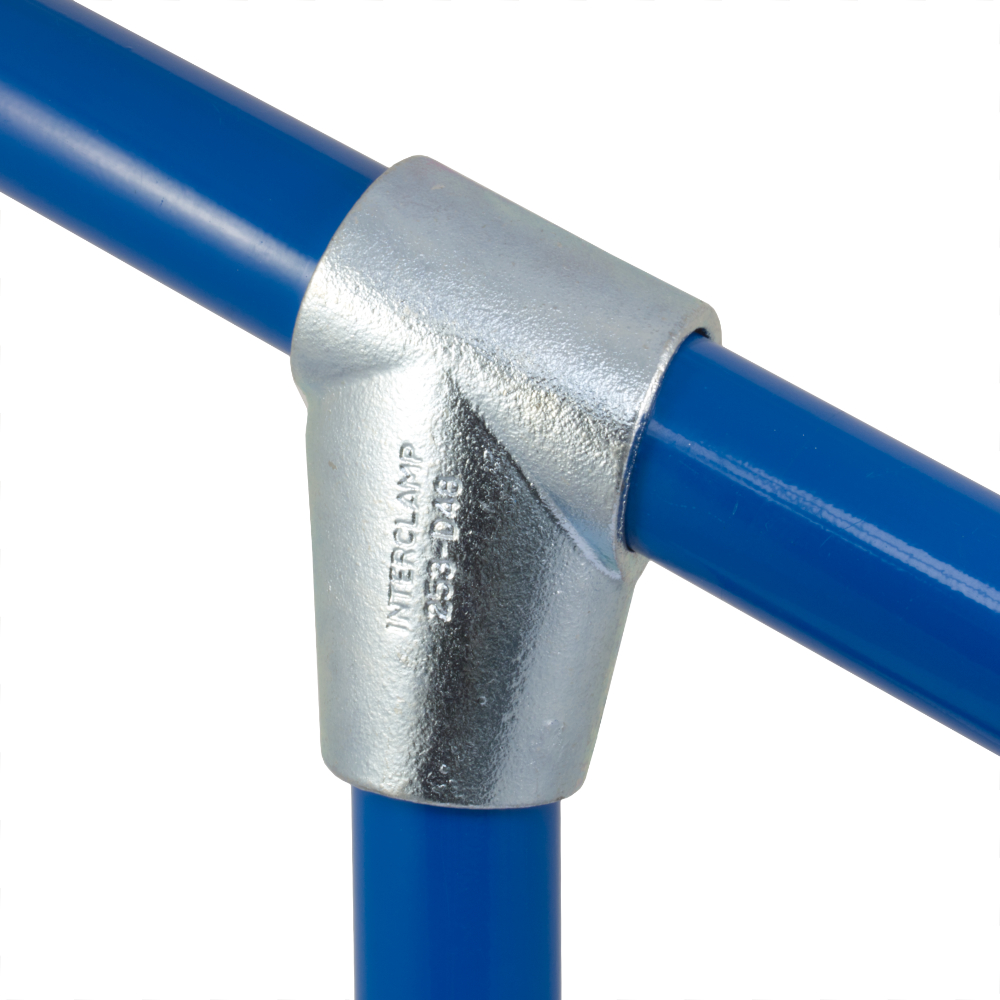

Butt joint for sloping sites, adjustable from 11° to 29°, often used to join intermediate uprights to top rails and middle rails to end uprights. This Interclamp® cannot be used where through tube (sloping in photo) has to be joined within the fitting. Type 255 may often be used as an alternative.
Please also see our Interclamp® Assist range of flush fittings to help compliance with the Disability Discrimination Act (DDA) and the Building Regulations Part M:2004.
De datos del producto y dimensiones

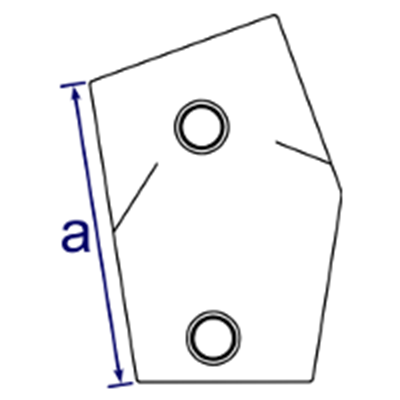

| Tamaño | a (mm) | Peso (kg) | Box Qty* | Part No |
| D48 | 115 | 0.84 | 26 | 253-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
