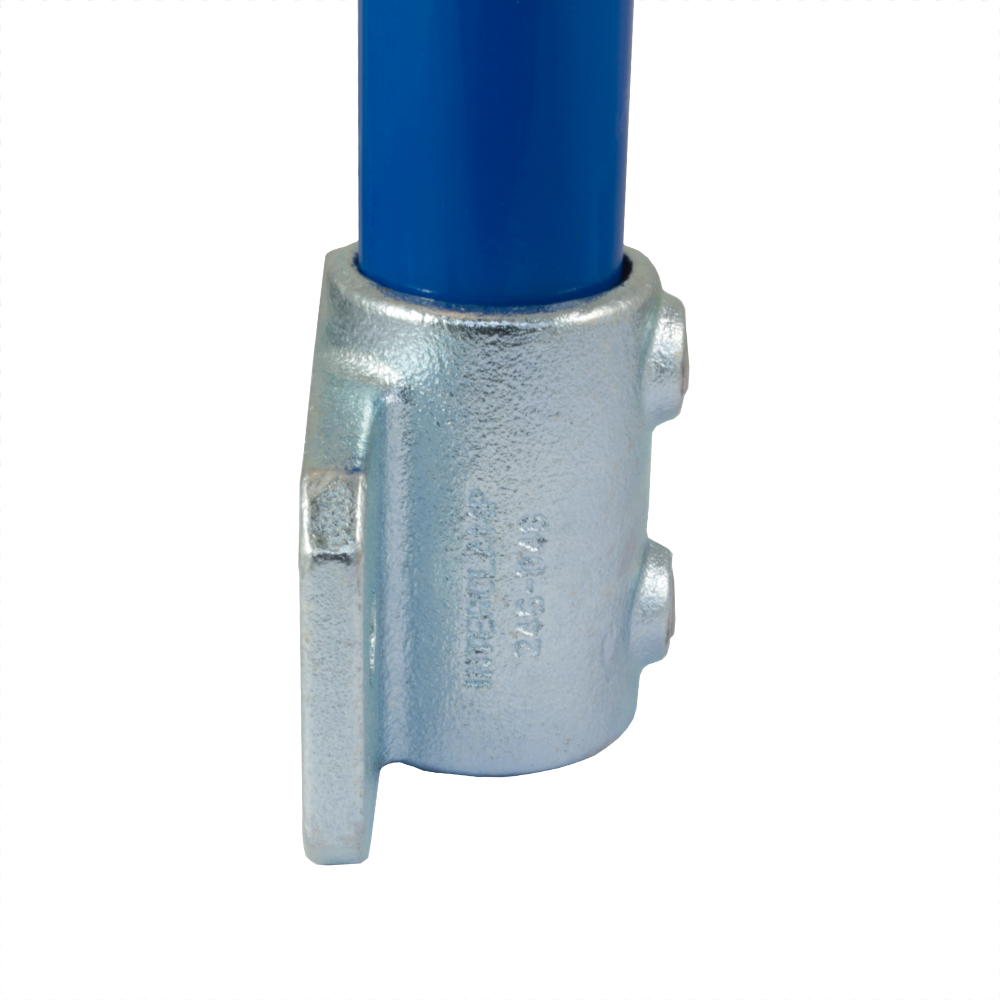

246 - Palma lateral resistente
Diseñado para ser intercambiable con las tradicionales bases estándar de bolas soldadas. Los orificios de fijación se adaptan a una amplia gama de anclajes de mampostería mecánicos y químicos comunes que deberíamos cotizar a pedido.
Designed to be interchangeable with traditional welded ball standard bases. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request.

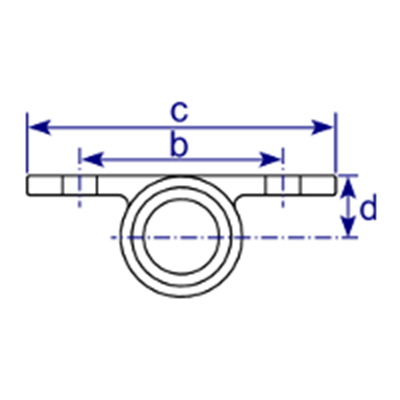

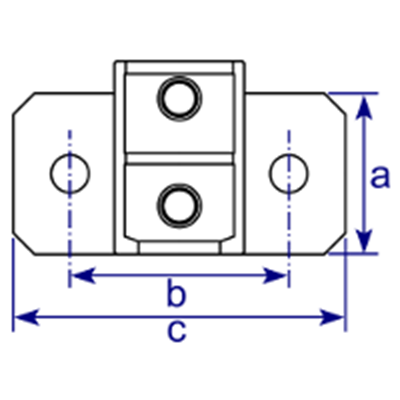

De datos del producto y dimensiones
| Tamaño | a (mm) | b (mm) | c (mm) | d (mm) | Peso (kg) | Box Qty* | Part No |
| B34 | 75 | 102 | 145 | 23.5 | 0.97 | 50 | 246-B34 |
| C42 | 75 | 102 | 145 | 28 | 1.09 | 35 | 246-C42 |
| D48 | 75 | 102 | 145 | 31.5 | 1.32 | 25 | 246-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
