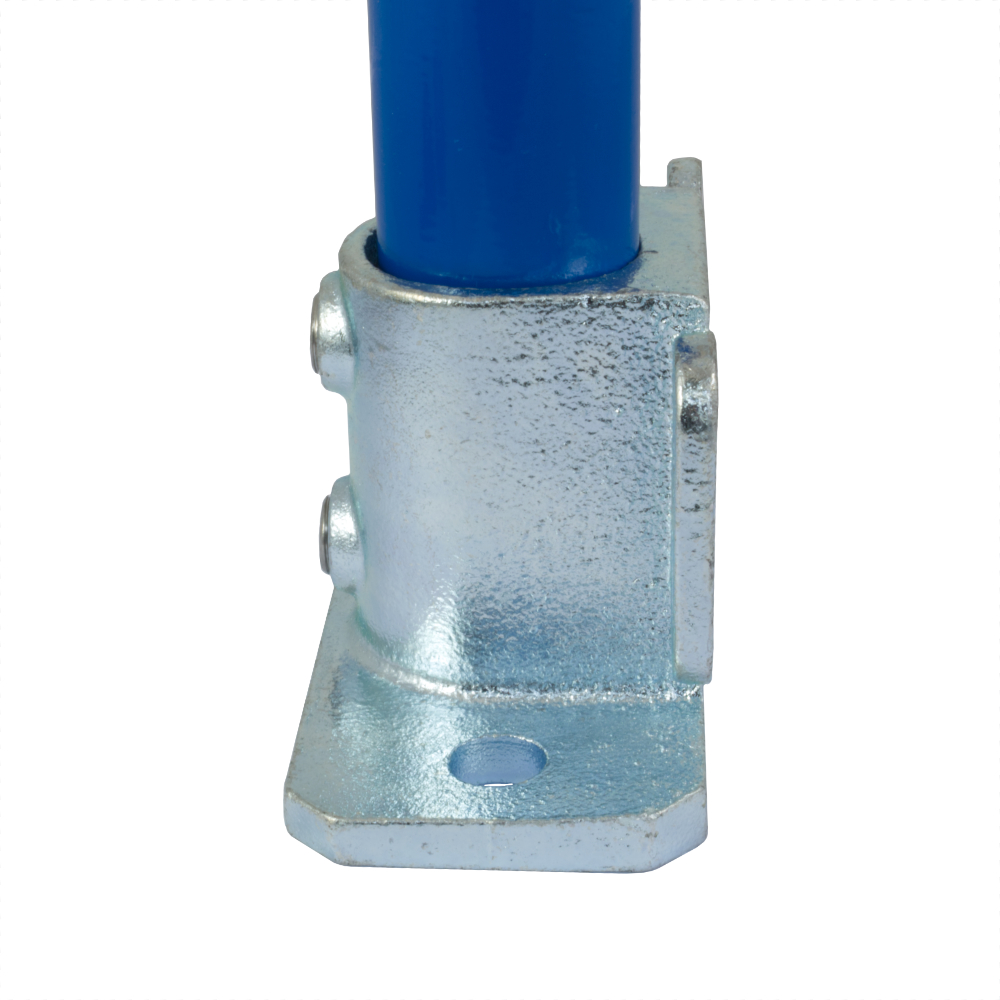

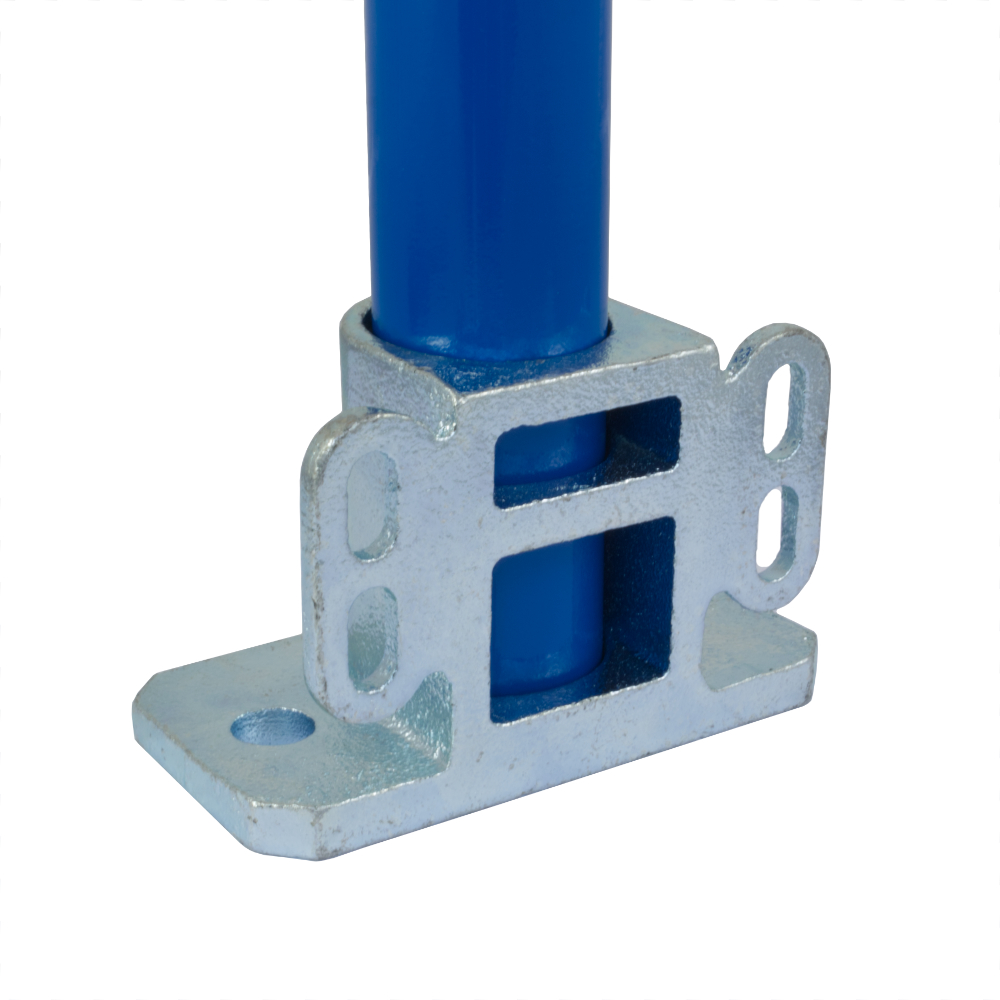

242 - Brida de base con toe board fixing
Brida de la base, generalmente utilizada para los montantes en sitios nivelados con la adición de lengüetas para el montaje de tablas de pie.
Base flange, usually used for uprights on level sites with the addition of lugs for mounting toe boards.
De datos del producto y dimensiones

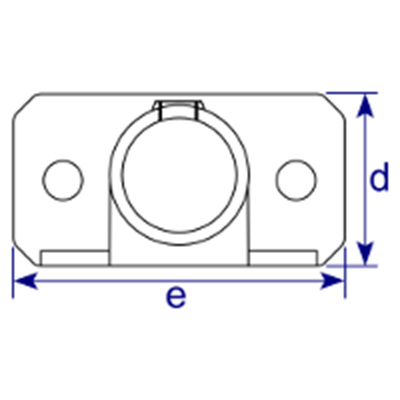

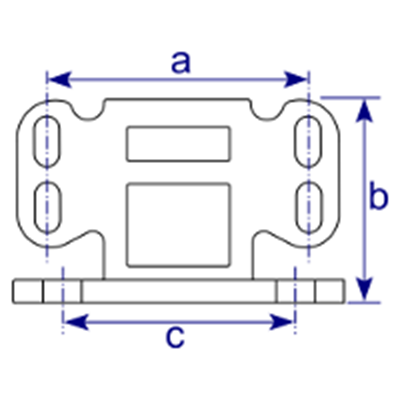

| Tamaño | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | Peso (kg) | Box Qty* | Part No |
| C42 | 100 | 90 | 102 | 75 | 145 | 1.51 | 18 | 242-C42 |
| D48 | 100 | 90 | 102 | 75 | 145 | 1.48 | 13 | 242-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
