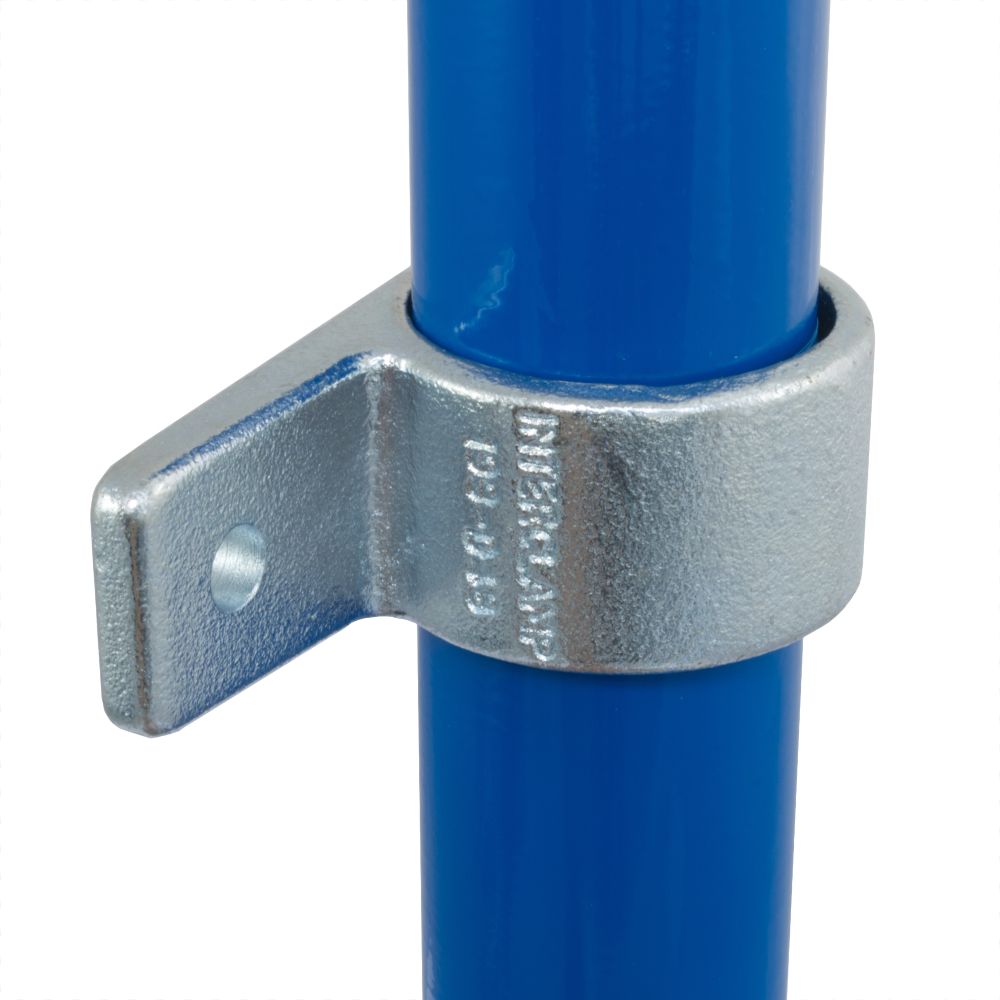

199 - Soporte de anclaje único
A menudo se utiliza para montar tablas prácticamente a ras de tubos. Los orificios de fijación se adaptan a una amplia gama de anclajes de mampostería mecánicos y químicos comunes que deberíamos cotizar a pedido. El tubo no se puede unir dentro de la conexión.
Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The tube cannot be joined within the fitting.

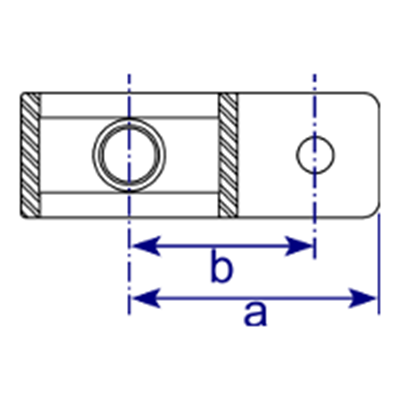

De datos del producto y dimensiones
| Tamaño | a (mm) | b (mm) | Peso (kg) | Box Qty* | Part No |
| B34 | 60 | 43 | 0.24 | 192 | 199-B34 |
| C42 | 66 | 48 | 0.31 | 144 | 199-C42 |
| D48 | 70 | 52 | 0.34 | 100 | 199-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
