192 - Weather Cowl

192 - Weather Cowl

This shield fits over type 132 and is sealed with silicone sealant (available separately at extra cost). This is often used on flat roofs to add additional protection against water ingress. Please contact us for installation instructions.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

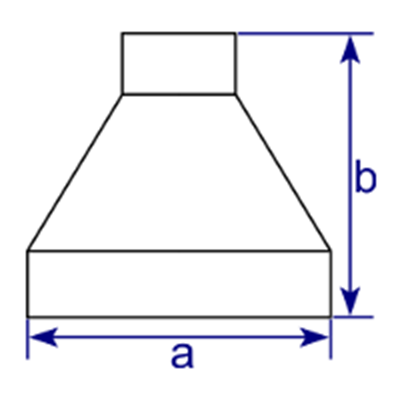

Dimensions Image 1 - 192 - Weather Cowl
Tamaño a (mm) b (mm) Peso (Kg) Box Qty* GTIN / EAN No
  B34   143   137   0.38   80   5060511022385
  C42   143   160   0.21   80   5060511022392
  D48   170   160   0.31   80   5060511022408

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
