Fácil de Especificar
Fácil de pedir
Rápido de montar
179 - Anillo de bloqueo
A menudo se usa con otros accesorios para aumentar la capacidad de carga de deslizamiento o para soportar otros accesorios que se dejan girar libremente en el tubo para formar pivotes, bisagras, etc. El tubo no se puede unir dentro del accesorio.
Often used with other fittings to increase slip load capacity or to support other fittings which are left to rotate freely on tube to form swivels, hinges etc. The tube cannot be joined within the fitting.

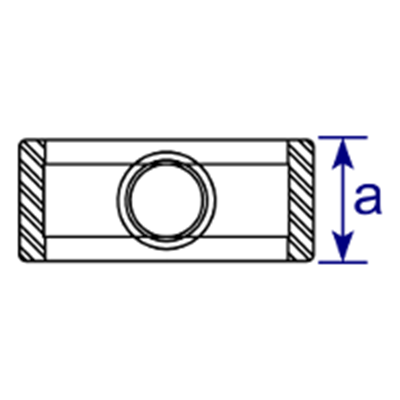

De datos del producto y dimensiones
| Tamaño | a (mm) | Peso (kg) | Box Qty* | Part No |
| A27 | 25 | 0.09 | 400 | 179-A27 |
| B34 | 25 | 0.12 | 270 | 179-B34 |
| C42 | 25 | 0.15 | 200 | 179-C42 |
| D48 | 25 | 0.16 | 140 | 179-D48 |
| E60 | 25 | 0.21 | 80 | 179-E60 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
