176 - Salida lateral Tee

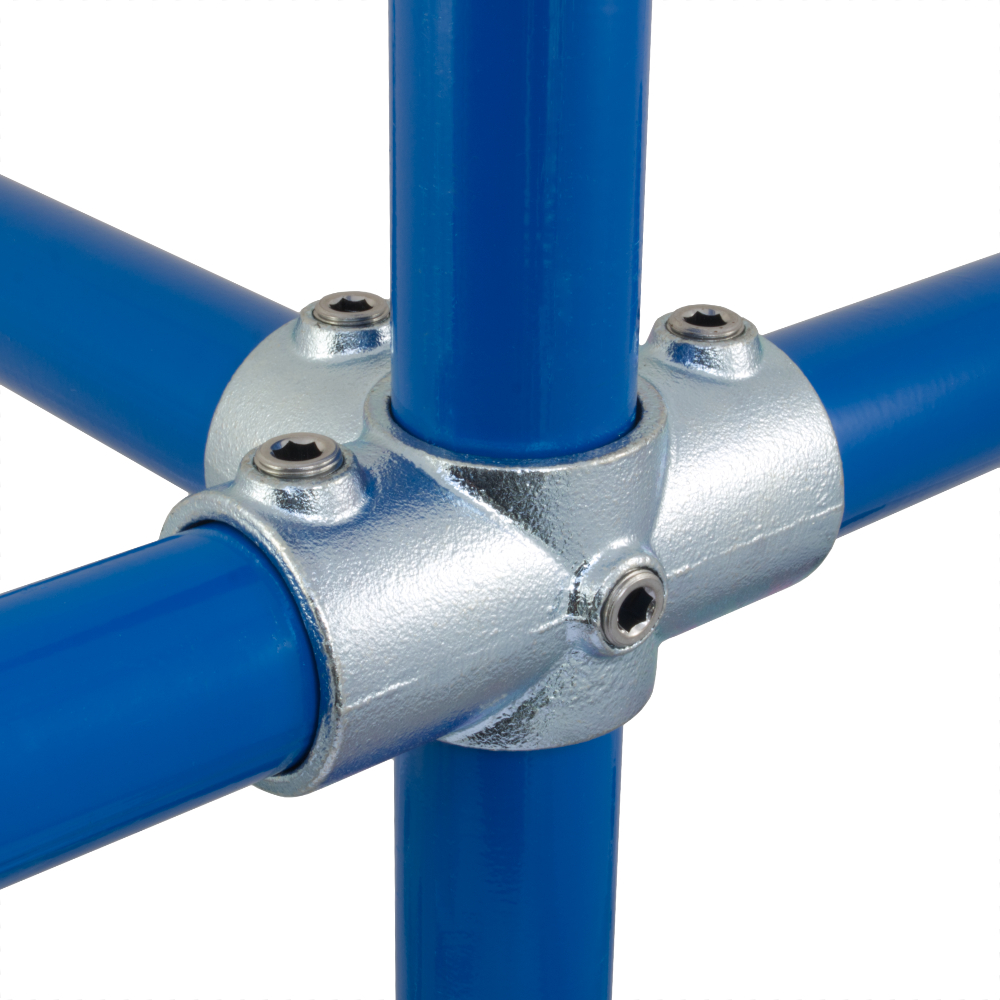

A menudo se utiliza en grandes estructuras tubulares con la posición vertical que pasa a través de la conexión. El tubo pasante (vertical en la foto) no se puede unir dentro del accesorio.
Often used in large tubular structures with the upright passing through the fitting. The through tube (vertical in photo) cannot be joined within the fitting.

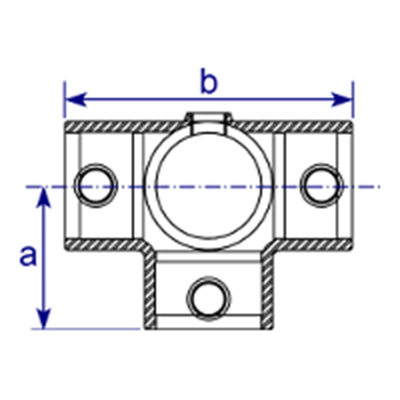

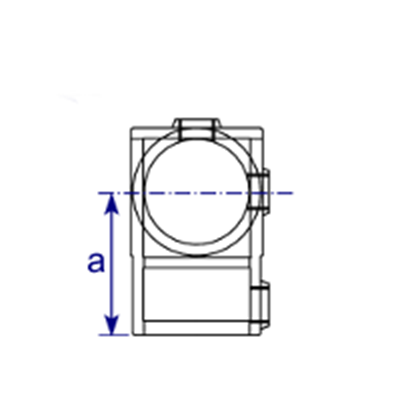

De datos del producto y dimensiones
| Tamaño | a (mm) | b (mm) | Peso (kg) | Box Qty* | Part No |
| AA21 | 0.3 | 0 | 176-AA21 | ||
| A27 | 41 | 82 | 0.36 | 75 | 176-A27 |
| B34 | 46 | 92 | 0.50 | 50 | 176-B34 |
| C42 | 60 | 120 | 0.79 | 25 | 176-C42 |
| D48 | 68 | 136 | 0.94 | 21 | 176-D48 |
| E60 | 84.5 | 169 | 1.53 | 10 | 176-E60 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
