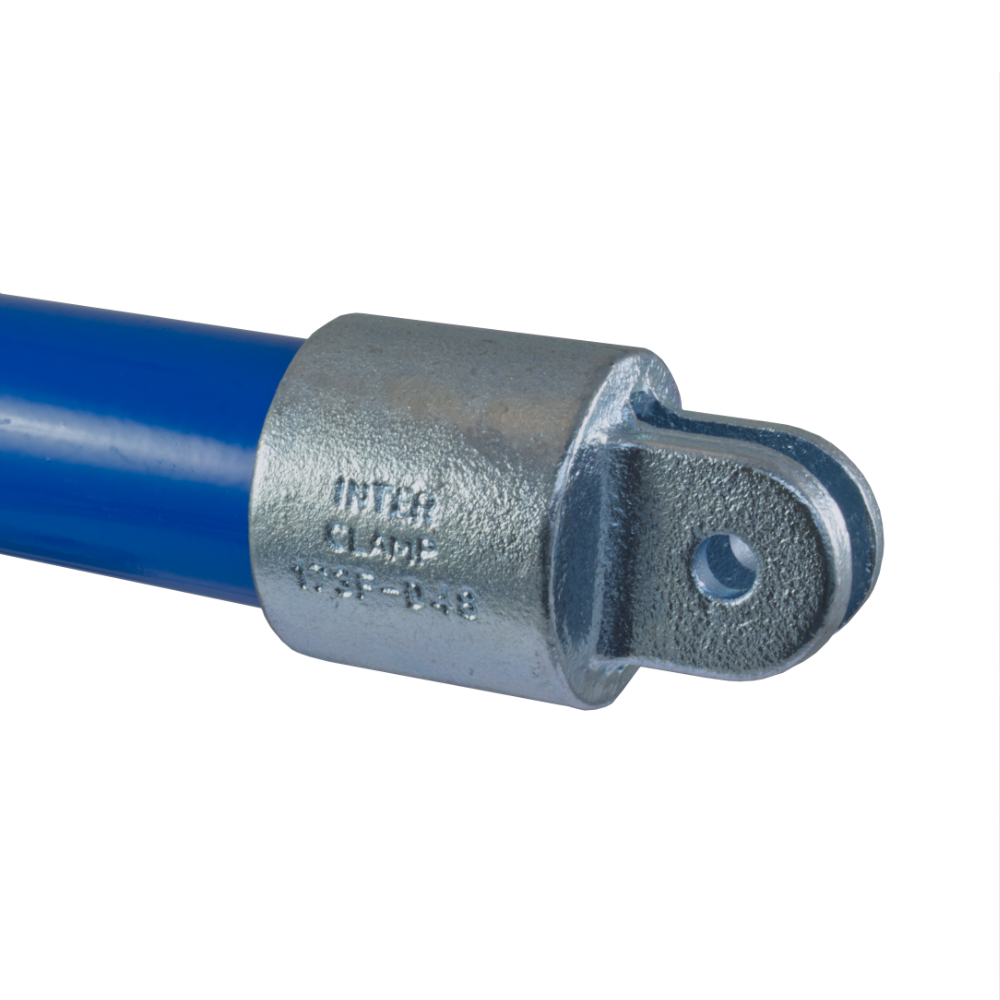

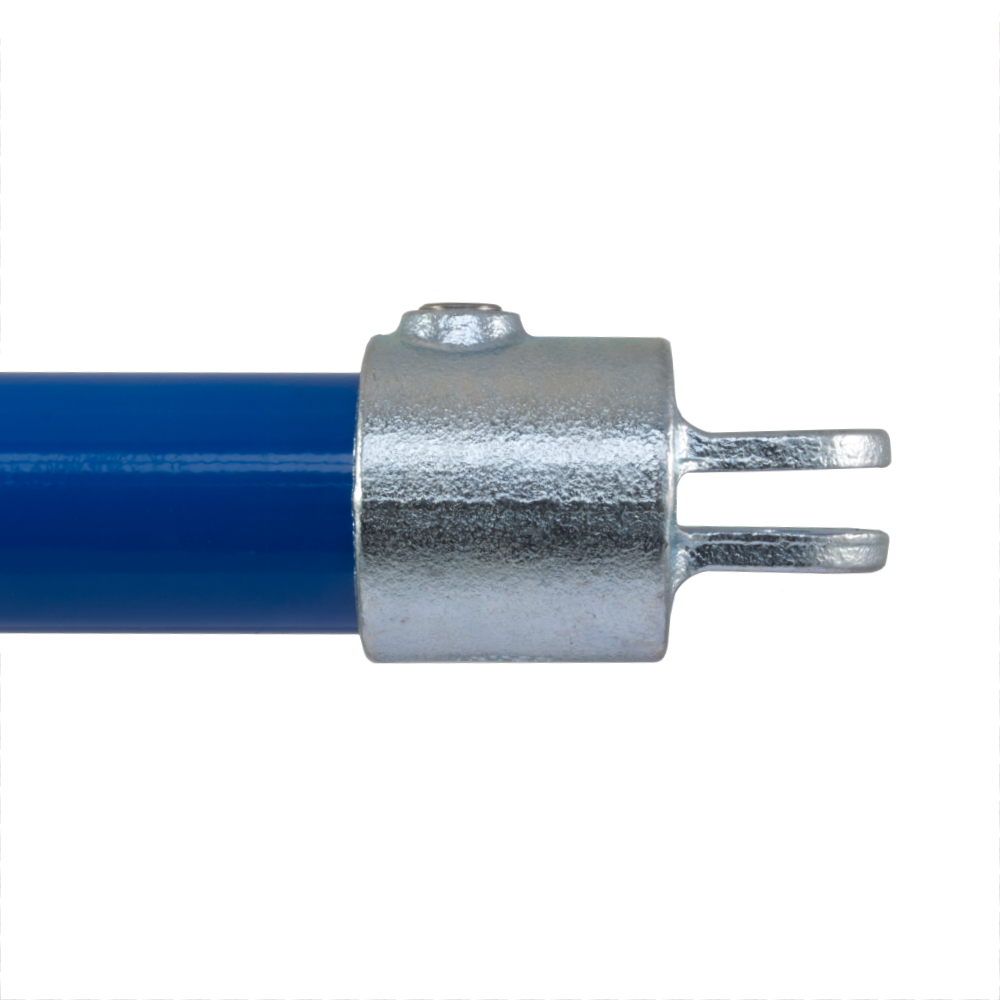

173F - Combinación giratoria única parte femenina
Ajuste versátil con multitud de usos. Puede suministrarse premontado con otros accesorios para formar los tipos 167, 168, 169 y 173.
Advertencia: Para proporcionar suficiente estabilidad, no se deben hacer estructuras completas solo con accesorios giratorios.
Versatile fitting with a multitude of uses. Can be supplied pre-assembled with other fittings to form types 167, 168, 169 and 173.
Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

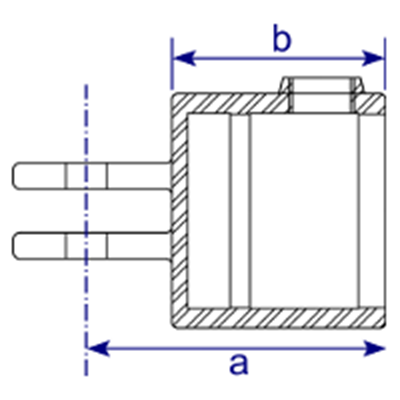

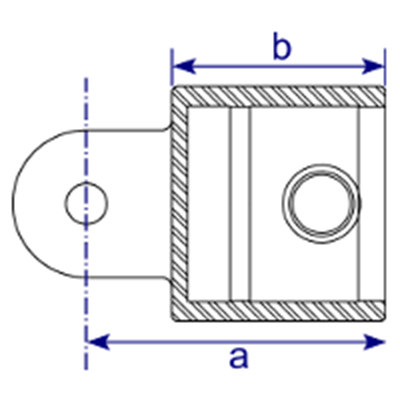

De datos del producto y dimensiones
| Tamaño | a (mm) | b (mm) | Peso (kg) | Box Qty* | Part No |
| A27 | 61 | 38 | 0.27 | 143 | 173F-A27 |
| B34 | 61 | 38 | 0.36 | 108 | 173F-B34 |
| C42 | 69 | 46 | 0.44 | 64 | 173F-C42 |
| D48 | 77 | 55 | 0.50 | 60 | 173F-D48 |
| E60 | 89 | 65 | 0.80 | 42 | 173F-E60 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
