171 - Double Mesh Panel Clip

171 - Double Mesh Panel Clip

For attaching mesh panels to both sides of tube. For single-sided clips, please refer to type 170. This fitting may also be used without the small return part to secure certain other types of sheet material to tubes eg. Board. The tube cannot be joined within the fitting.

N.B. This item is manufactured from steel, not malleable iron.
Please note that bolts are BZP coated.

Designed to suit 8mm rod.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

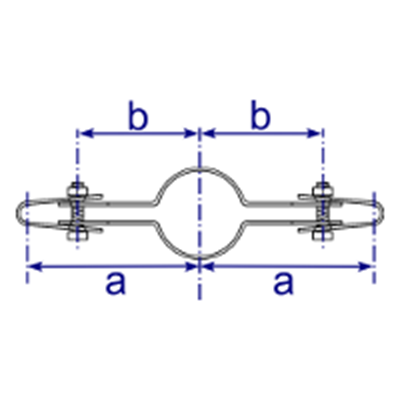

Dimensions Image 1 - 171 - Double Mesh Panel Clip

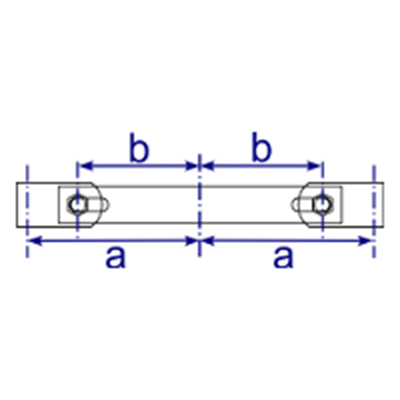

Dimensions Image 2 - 171 - Double Mesh Panel Clip
Tamaño a (mm) b (mm) Peso (Kg) Box Qty* GTIN / EAN No
  A27   50 - 64   24 - 38   0.11   160   5060511021968
  B34   54 - 64   28 - 38   0.11   260   5060511021975
  C42   60 - 70   34 - 44   0.11   240   5060511021982
  D48   62 - 72   34 - 44   0.12   240   5060511021999
  E60   70 - 80   45 - 55   0.14   130   5060511022002

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
