167M

167M

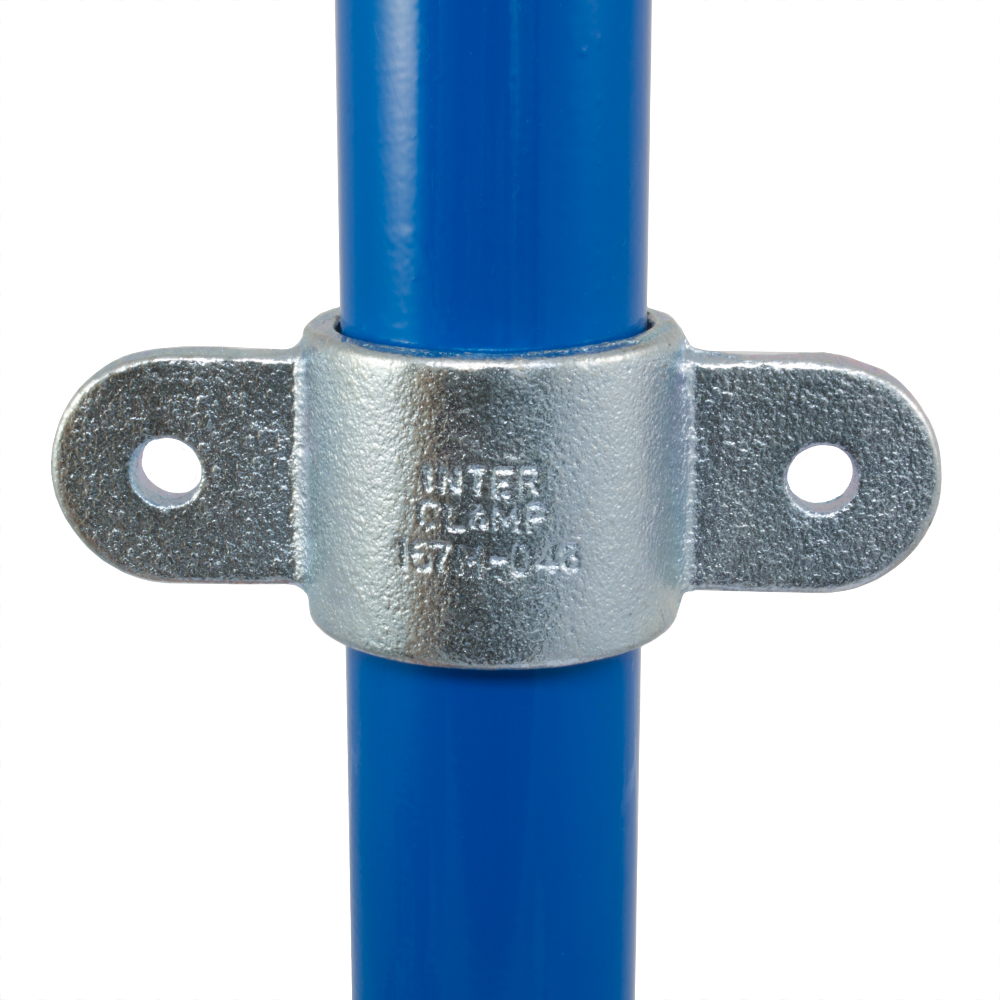

Double lugged fitting. The tube cannot be joined within the fitting.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

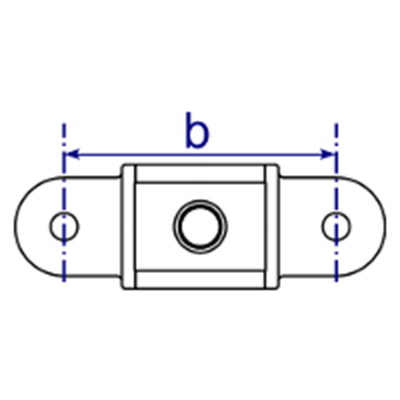

Dimensions Image 1 - 167M
Dimensions Image 2 - 167M
Tamaño b (mm) Peso (Kg) Box Qty* GTIN / EAN No
  A27   80   0.29   123   5060511021708
  B34   84   0.35   97   5060511021715
  C42   95   0.41   84   5060511021722
  D48   105   0.46   60   5060511021739
  E60   124   0.63   36   5060511021746

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
