160 - Abrazadera a través

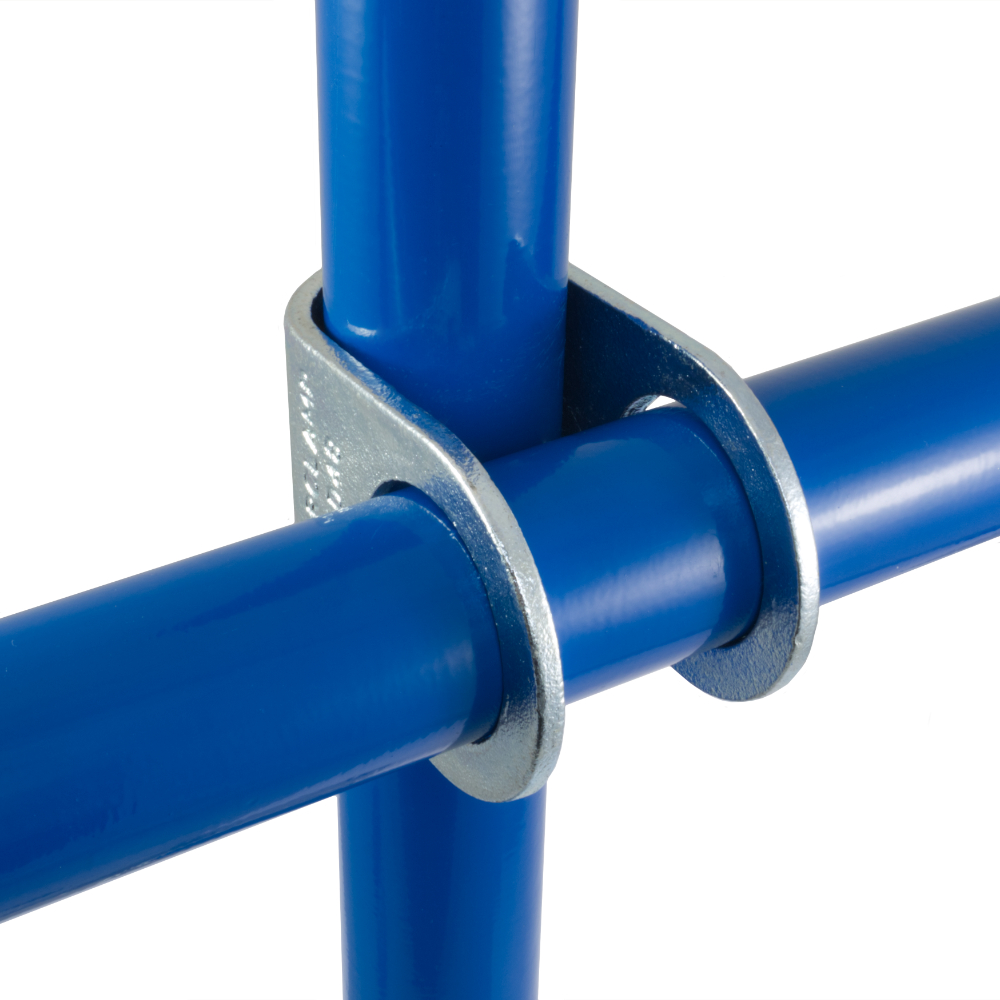

Diseñado para formar una unión de 90 ° entre dos tubos. A menudo se utiliza para añadir a las estructuras existentes. El tipo 137 se puede usar a menudo como una alternativa de sujeción, o el tipo 161 se puede usar a menudo como una alternativa en nuevas estructuras.
Designed to form a 90° joint between two tubes. Often used to add to existing structures. Type 137 can often be used as a clamp-on alternative, or type 161 can often be used as an alternative on new structures.

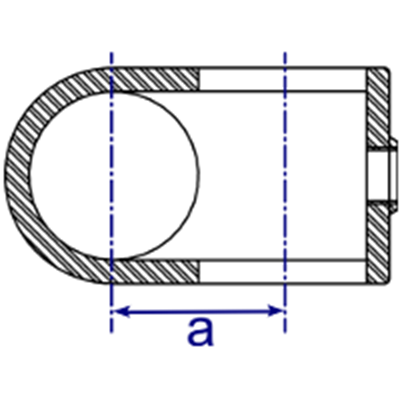

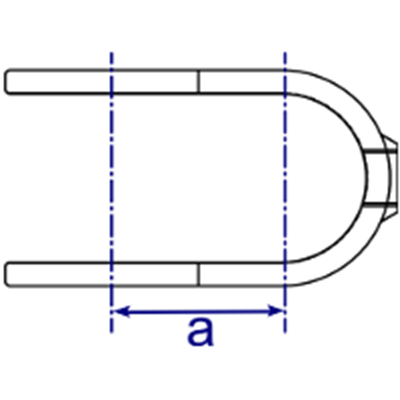

De datos del producto y dimensiones
| Tamaño | a (mm) | Peso (kg) | Box Qty* | Part No |
| A27 | 28 | 0.17 | 170 | 160-A27 |
| B34 | 34 | 0.28 | 80 | 160-B34 |
| C42 | 43.5 | 0.43 | 60 | 160-C42 |
| D48 | 49.5 | 0.56 | 48 | 160-D48 |
| E60 | 61 | 0.84 | 30 | 160-E60 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
