156 - Inclinación a cruzar (Riel medio) (0° - 11°)

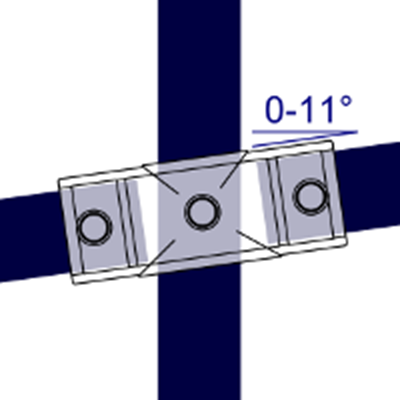

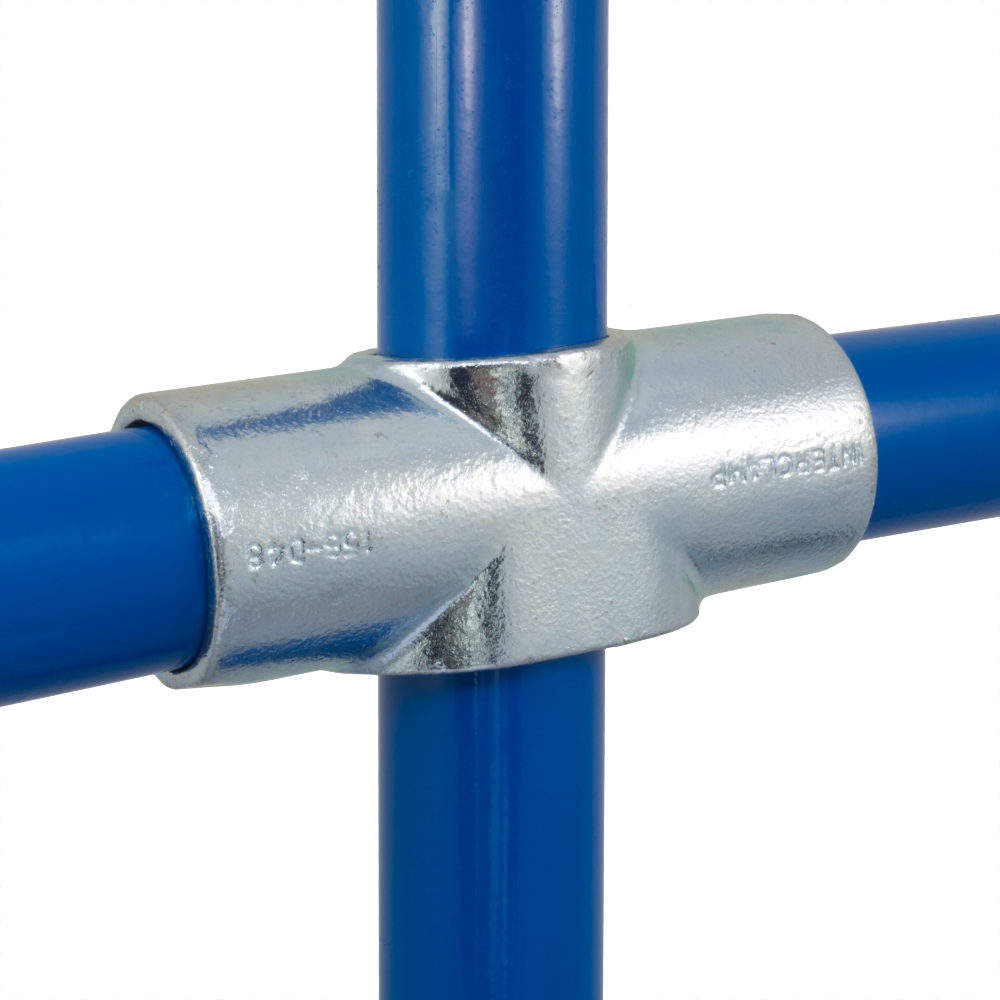

Ajustable para pendientes de 0 ° a 11 °, a menudo se usa entre el riel medio y los montantes en sitios inclinados y con frecuencia se combina con el tipo 153 o 155. El tubo pasante (vertical en la foto) no se puede unir dentro del accesorio.
Adjustable for slopes from 0° to 11°, often used between middle rail and uprights on sloping sites and often paired with type 153 or 155. The through tube (vertical in photo) cannot be joined within the fitting.

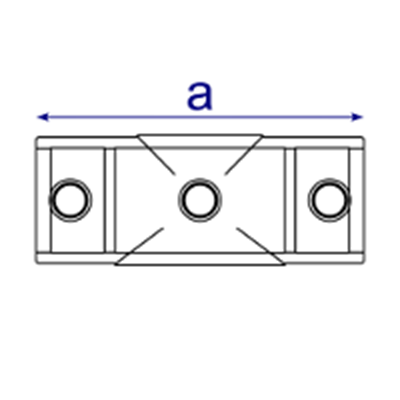

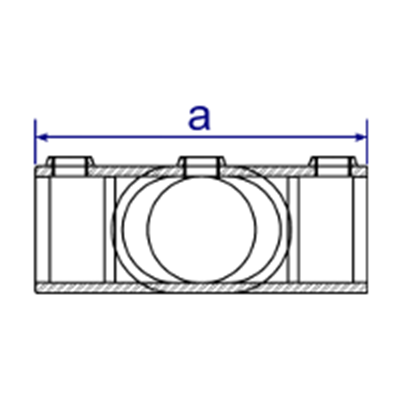

De datos del producto y dimensiones
| Tamaño | a (mm) | Peso (kg) | Box Qty* | Part No |
| B34 | 112 | 0.54 | 50 | 156-B34 |
| C42 | 140 | 0.73 | 35 | 156-C42 |
| D48 | 158 | 0.88 | 24 | 156-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
