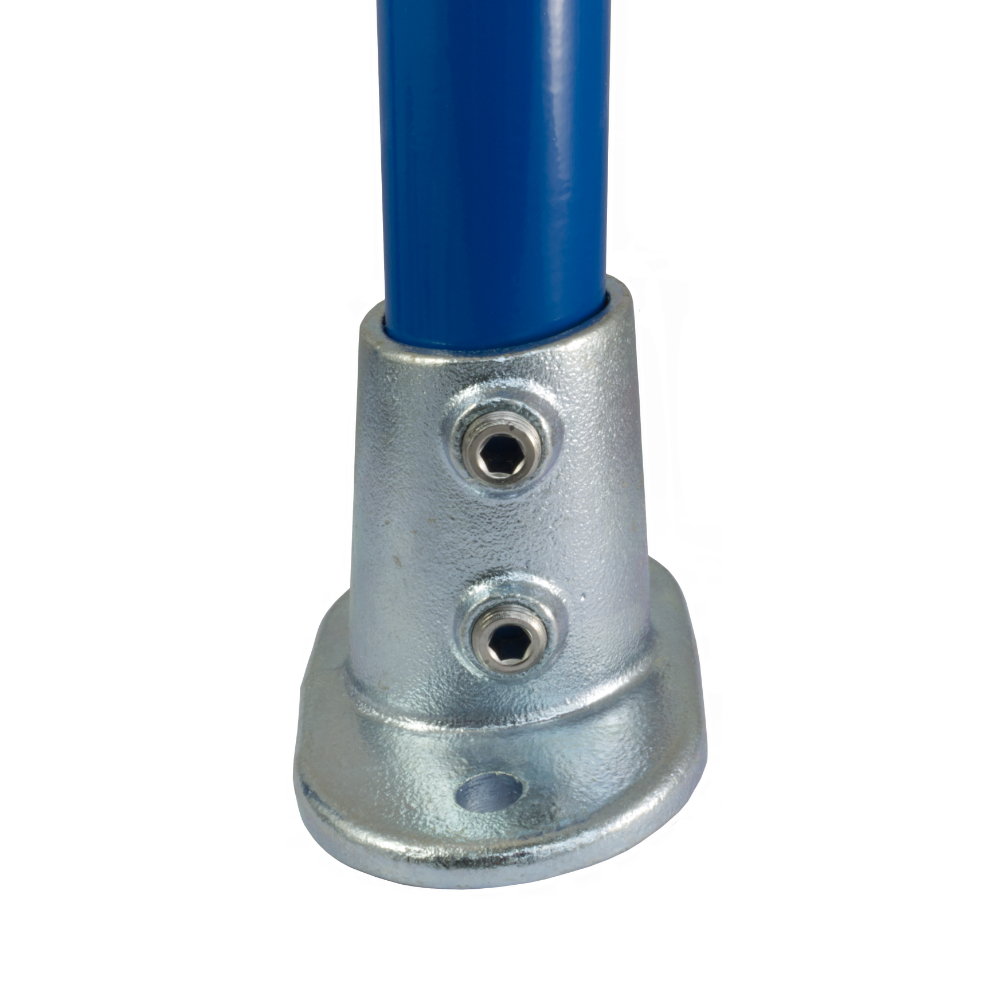

152 - Inclination brida de base (0° - 11°)

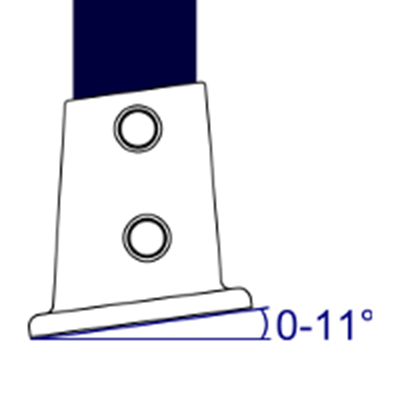

Brida de la base para sitios inclinados, ajustable de 0 ° a 11 °, generalmente utilizada para montantes de rampas de barandas y sillas de ruedas. Los orificios de fijación se adaptan a una amplia gama de anclajes de mampostería mecánicos y químicos comunes que deberíamos cotizar a pedido.
Para lograr las características de carga óptimas, este accesorio debe instalarse de modo que los orificios de fijación estén alineados con la carga aplicada.
Base flange for sloping sites, adjustable from 0° to 11°, usually used for guardrail and wheelchair ramp uprights. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request.
To achieve optimum load characteristics, this fitting should be fitted so that the fixing holes are in line with the applied load.

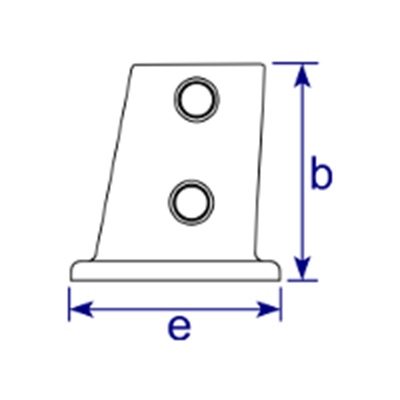

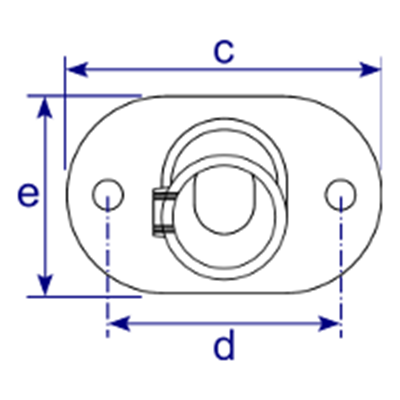

De datos del producto y dimensiones
| Tamaño | b (mm) | c (mm) | d (mm) | e (mm) | Hole Dia (mm) | Peso (kg) | Box Qty* | Part No |
| B34 | 90 | 127 | 89 | 80 | 15 | 0.92 | 30 | 152-B34 |
| C42 | 99 | 141 | 102 | 90 | 15 | 1.15 | 25 | 152-C42 |
| D48 | 99 | 153 | 113 | 96 | 15 | 1.42 | 20 | 152-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
