148 - Giratorio corto Tee

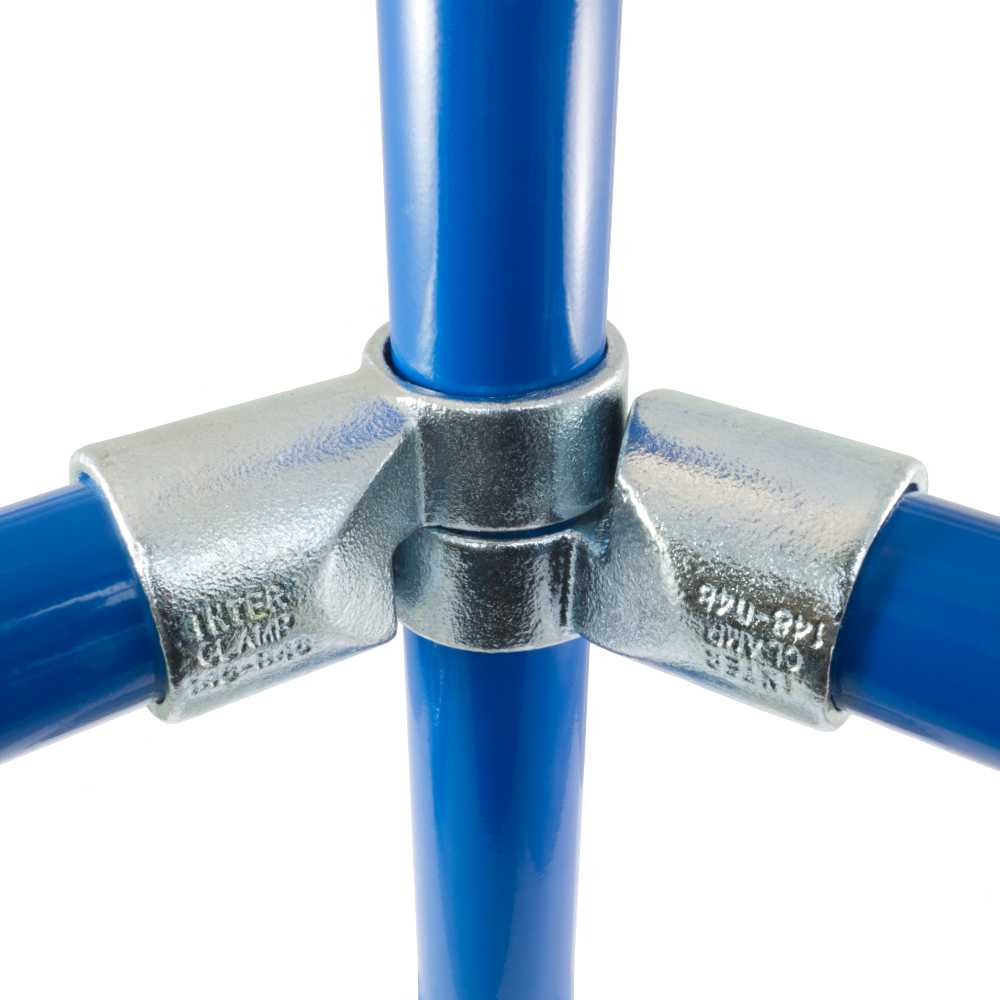

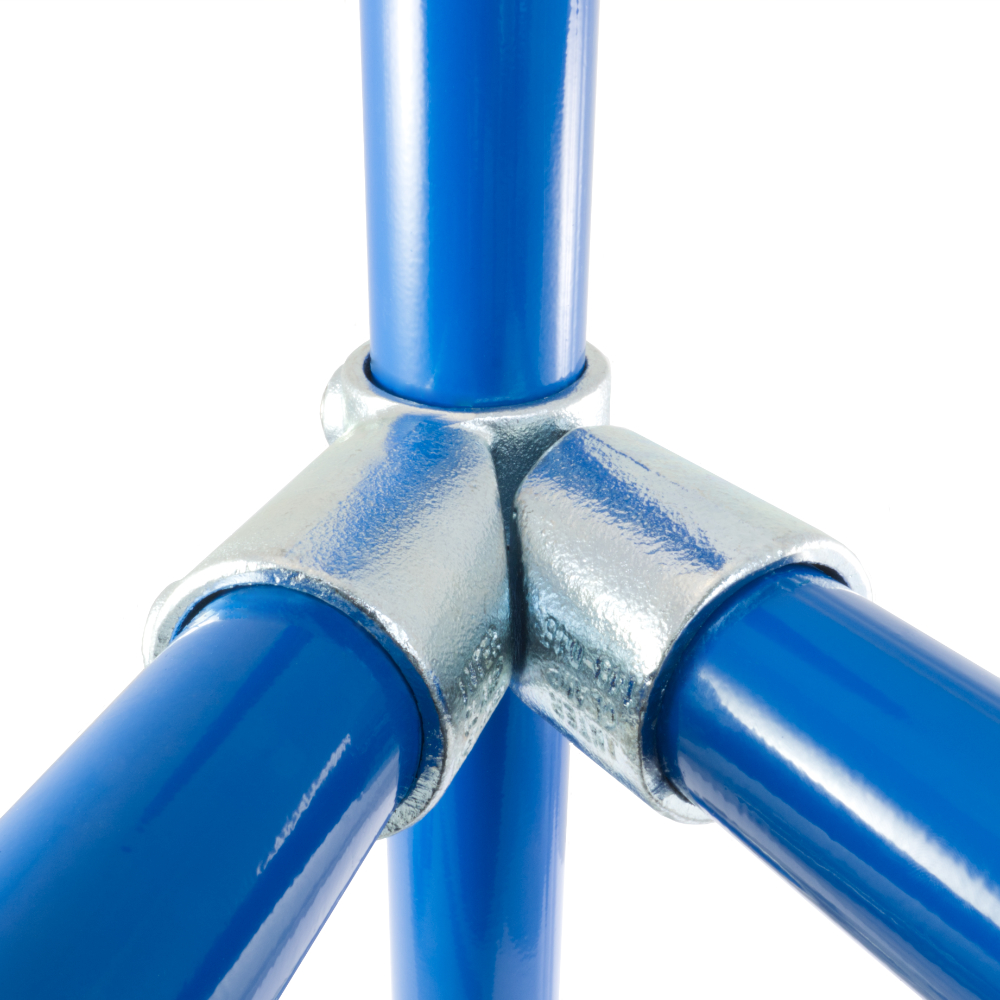

Un accesorio versátil, generalmente utilizado en parejas. Aunque la foto muestra dos accesorios, este artículo se vende y tiene un precio individual. El tubo pasante (vertical en la foto) no se puede unir dentro del accesorio. La imagen muestra 2 accesorios.

A versatile fitting, usually used in pairs. Although the photo shows two fittings, this item is sold and priced individually. The through tube (vertical in photo) cannot be joined within the fitting. Image shows 2 fittings.

De datos del producto y dimensiones

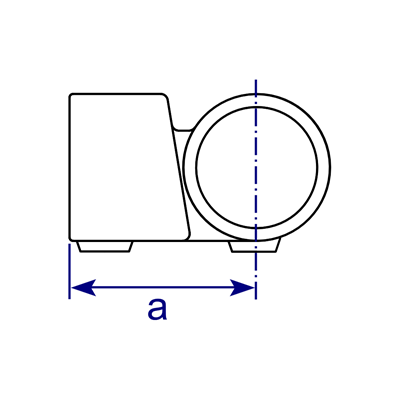

Tamaño a (mm) Peso (kg) Box Qty* Part No
  A27   53   0.19   168   148-A27
  B34   59   0.29   100   148-B34
  C42   73   0.45   72   148-C42
  D48   93   0.66   40   148-D48
  E60   110   1.01   26   148-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
