140 - Pasador de la bisagra de la puerta
A menudo se utiliza con el tipo 138 para formar bisagras de la puerta. El tubo no se puede unir dentro de la conexión.
Often used with type 138 to form gate hinges. The tube cannot be joined within the fitting.

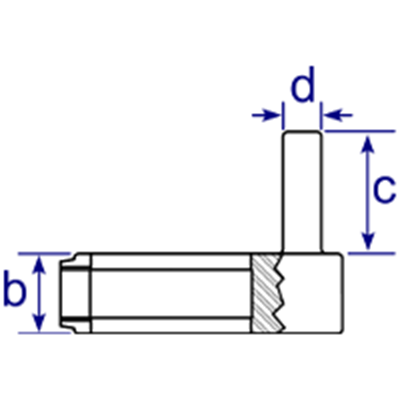

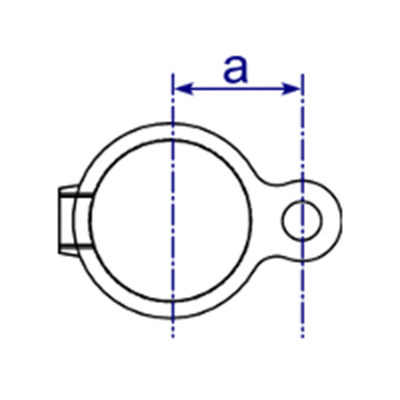

De datos del producto y dimensiones
| Tamaño | a (mm) | b (mm) | c (mm) | d (mm) | Peso (kg) | Box Qty* | Part No |
| A27 | 30 | 25.5 | 38 | 12 | 0.25 | 200 | 140-A27 |
| B34 | 33 | 25.5 | 38 | 12 | 0.28 | 180 | 140-B34 |
| C42 | 38 | 25 | 38 | 12 | 0.29 | 150 | 140-C42 |
| D48 | 41 | 25 | 38 | 12 | 0.30 | 120 | 140-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
