137 - Clamp-on Crossover 90°

137 - Clamp-on Crossover 90°

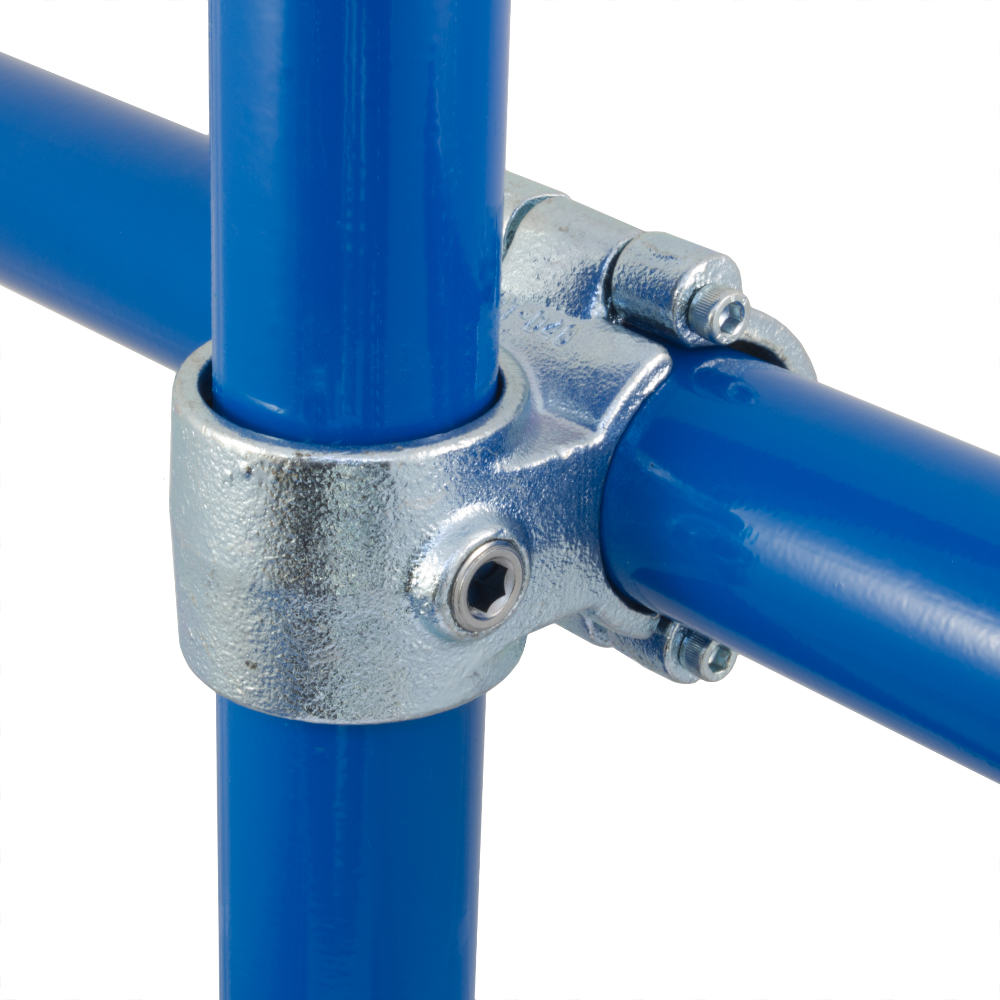

90° bolt-on joint, often used to make additions or alterations to existing structures where a type 161 cannot be fitted. The tubes cannot be joined within the fitting.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

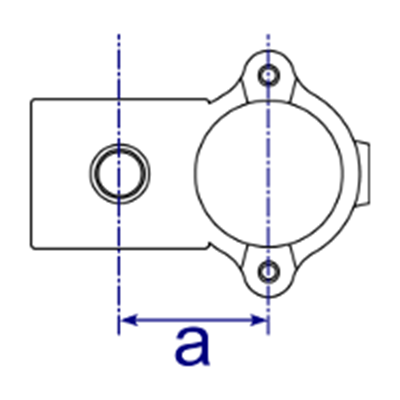

Dimensions Image 1 - 137 - Clamp-on Crossover 90°
Tamaño a (mm) Peso (Kg) Box Qty* GTIN / EAN No
  D48   55   0.82   30   5060511020831

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
