Fácil de Especificar
Fácil de pedir
Rápido de montar
134 - Suelo enchufe

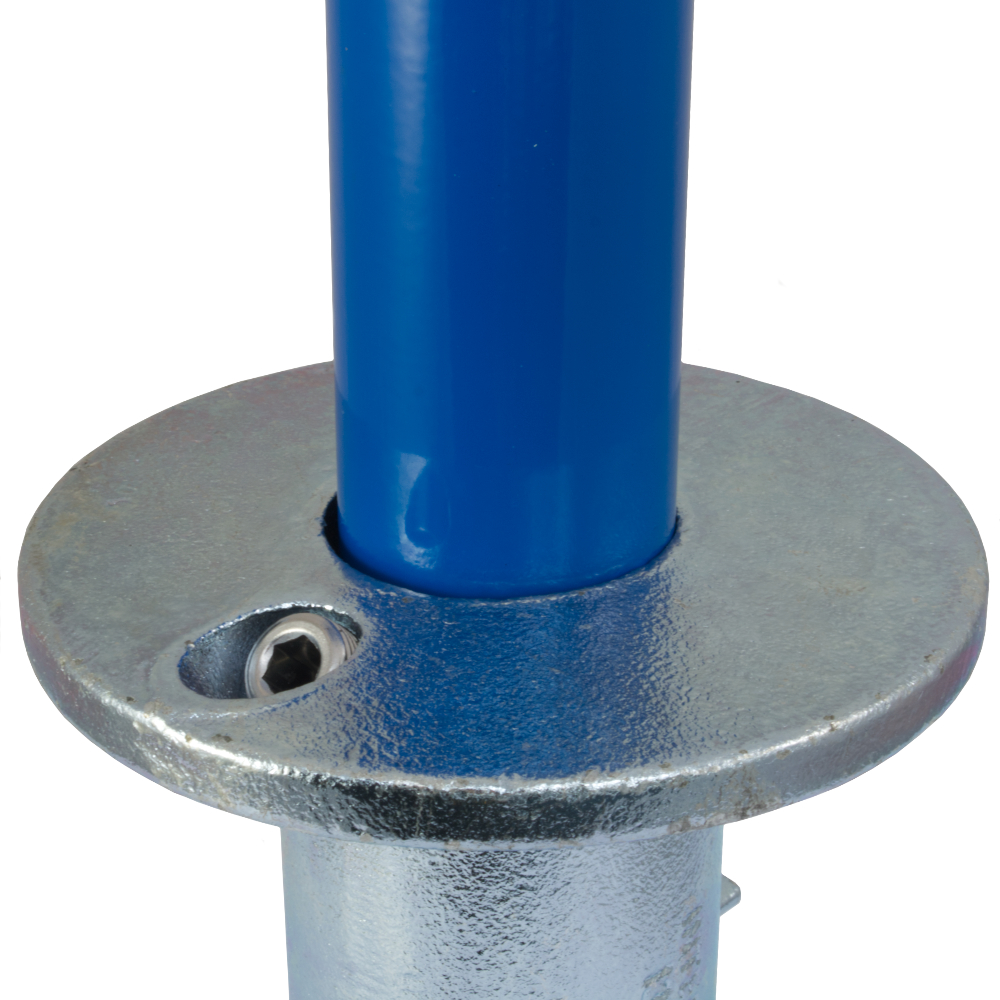

Un tornillo de fijación permite que se retire el montante cuando sea necesario, quedando el accesorio fundido en su lugar.
A setscrew allows the upright to be removed when required, the fitting remaining cast in place.

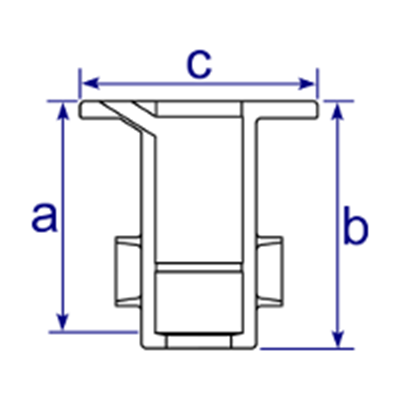

De datos del producto y dimensiones
| Tamaño | a (mm) | b (mm) | c (mm) | Peso (kg) | Box Qty* | Part No |
| B34 | 113 | 122 | 127 | 1.92 | 18 | 134-B34 |
| C42 | 125.5 | 135 | 139 | 2.60 | 12 | 134-C42 |
| D48 | 124.5 | 135 | 139 | 2.50 | 12 | 134-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

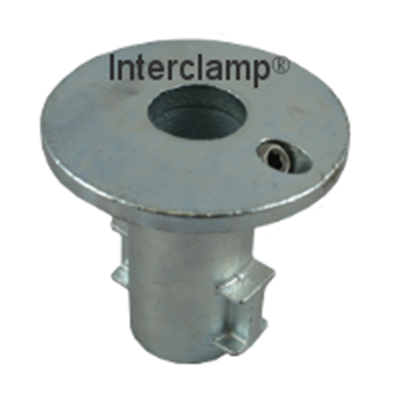

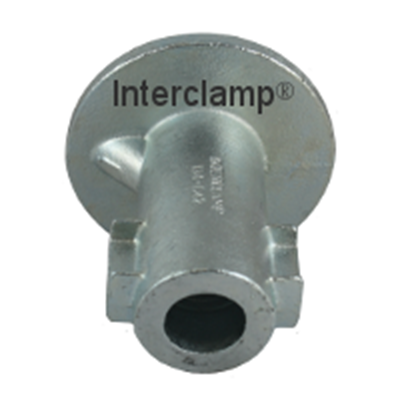

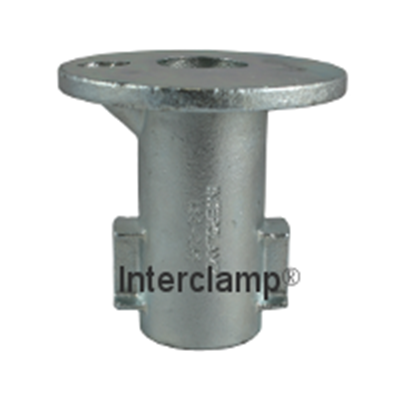

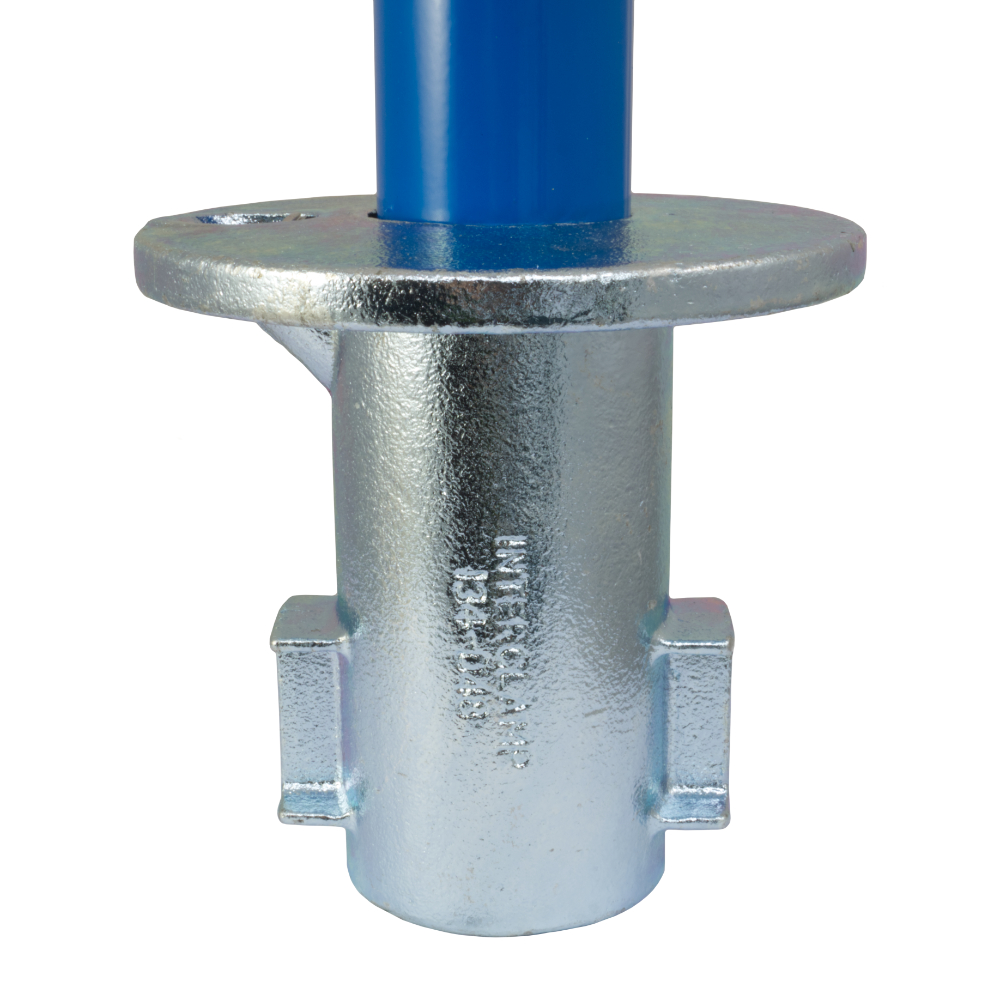

Product Images
