127 - Adjustable Long Tee (30° - 45°)

127 - Adjustable Long Tee (30° - 45°)

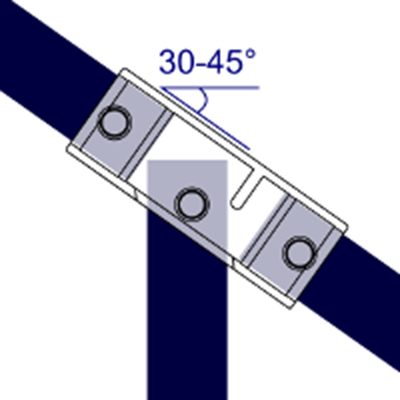

Adjustable from 30° to 45°, often used on staircase top rails. This Interclamp can be used where the top rail must be joined at the fitting. Where such a joint is not required, type 129 can often be used as an alternative. Often used in conjunction with type 130.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

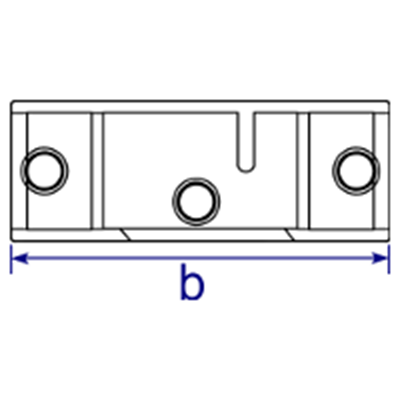

Dimensions Image 1 - 127 - Adjustable Long Tee (30° - 45°)

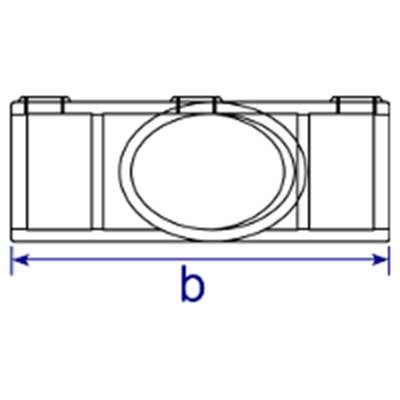

Dimensions Image 2 - 127 - Adjustable Long Tee (30° - 45°)
Dimensions Image 3 - 127 - Adjustable Long Tee (30° - 45°)
Tamaño b (mm) Peso (Kg) Box Qty* GTIN / EAN No
  B34   118   0.59   58   5060511020428
  C42   147   0.89   35   5060511020435
  D48   165   1.08   23   5060511020442

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

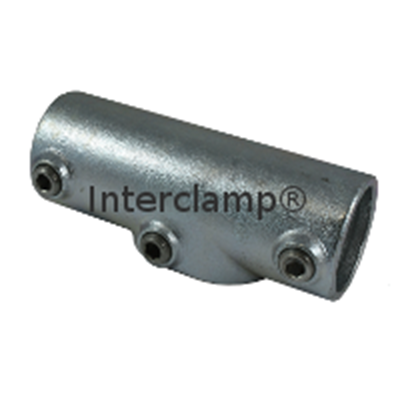

Product Images 1 - 127 - Adjustable Long Tee (30° - 45°)

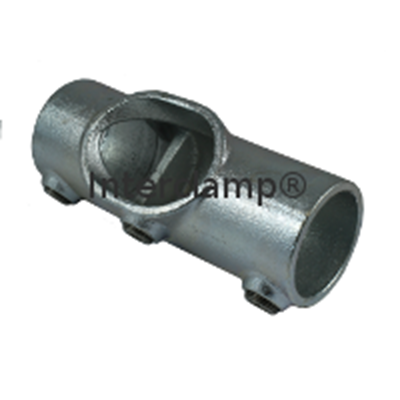

Product Images 2 - 127 - Adjustable Long Tee (30° - 45°)
