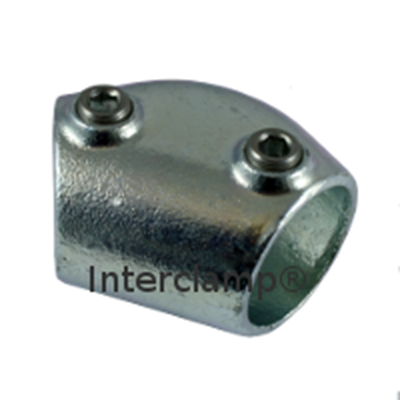

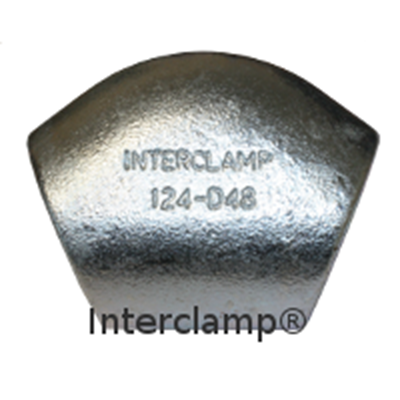

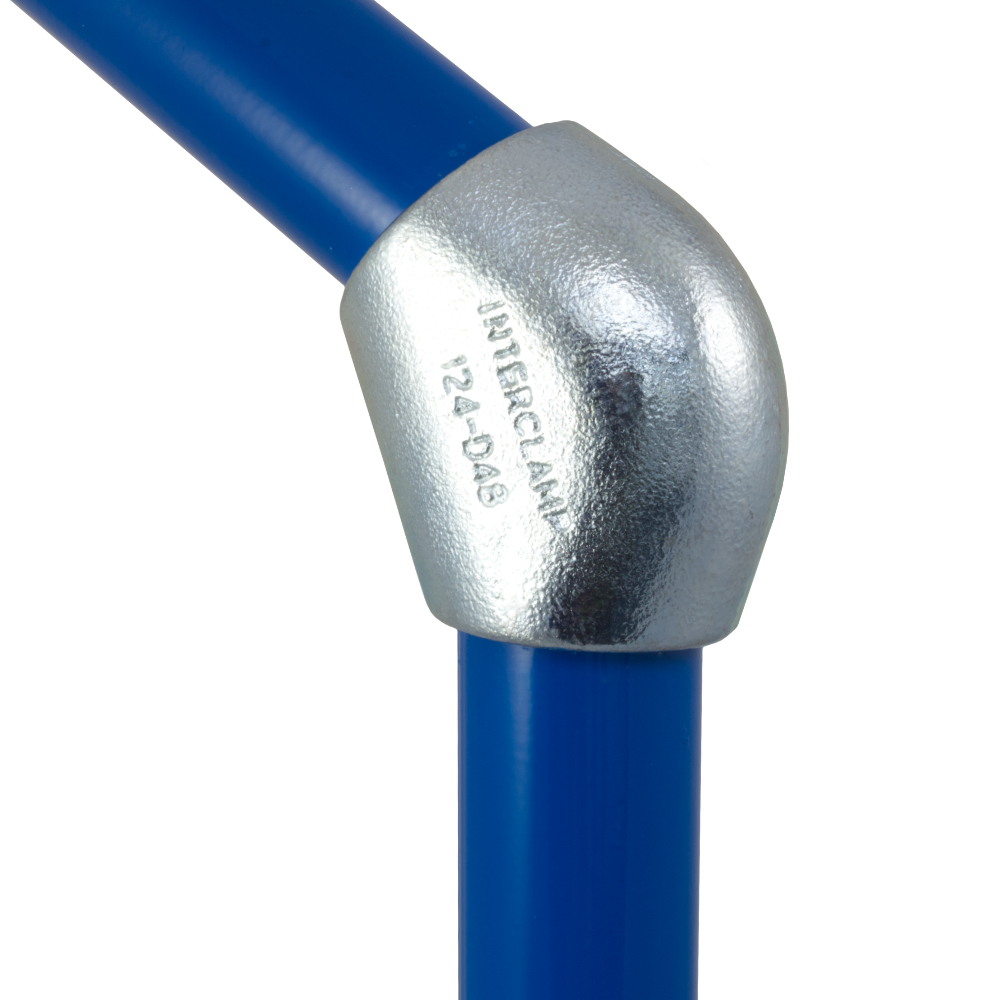

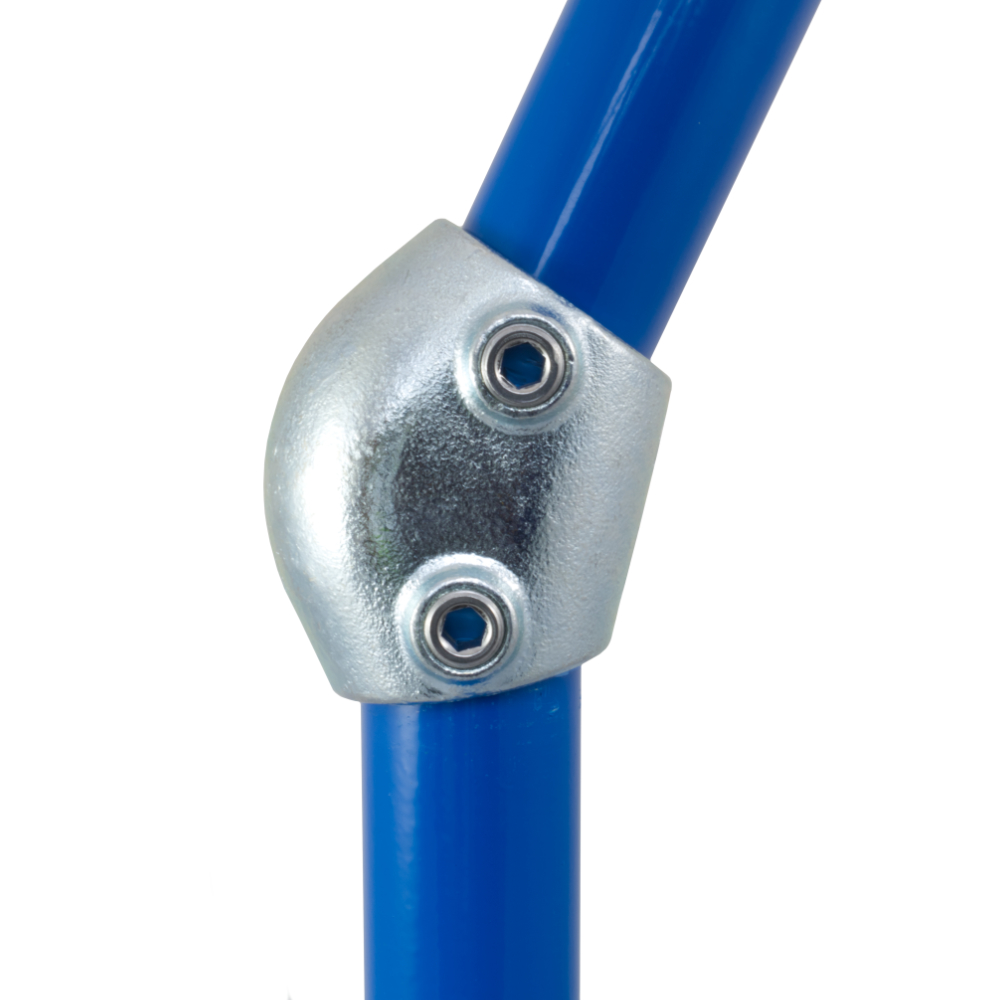

124 - Codo variable (15° - 60°)

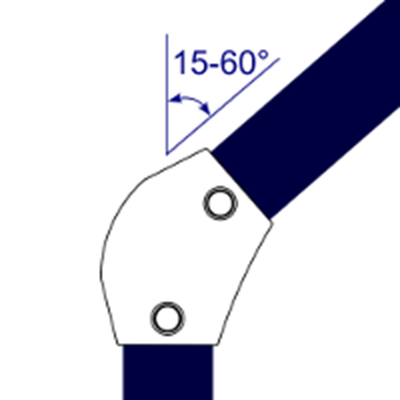

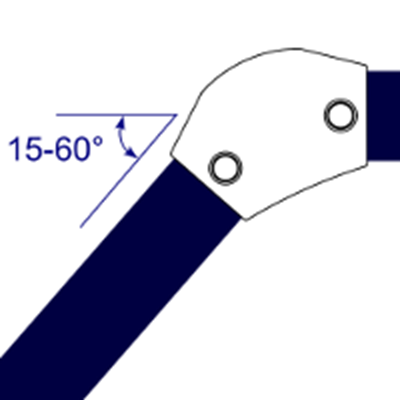

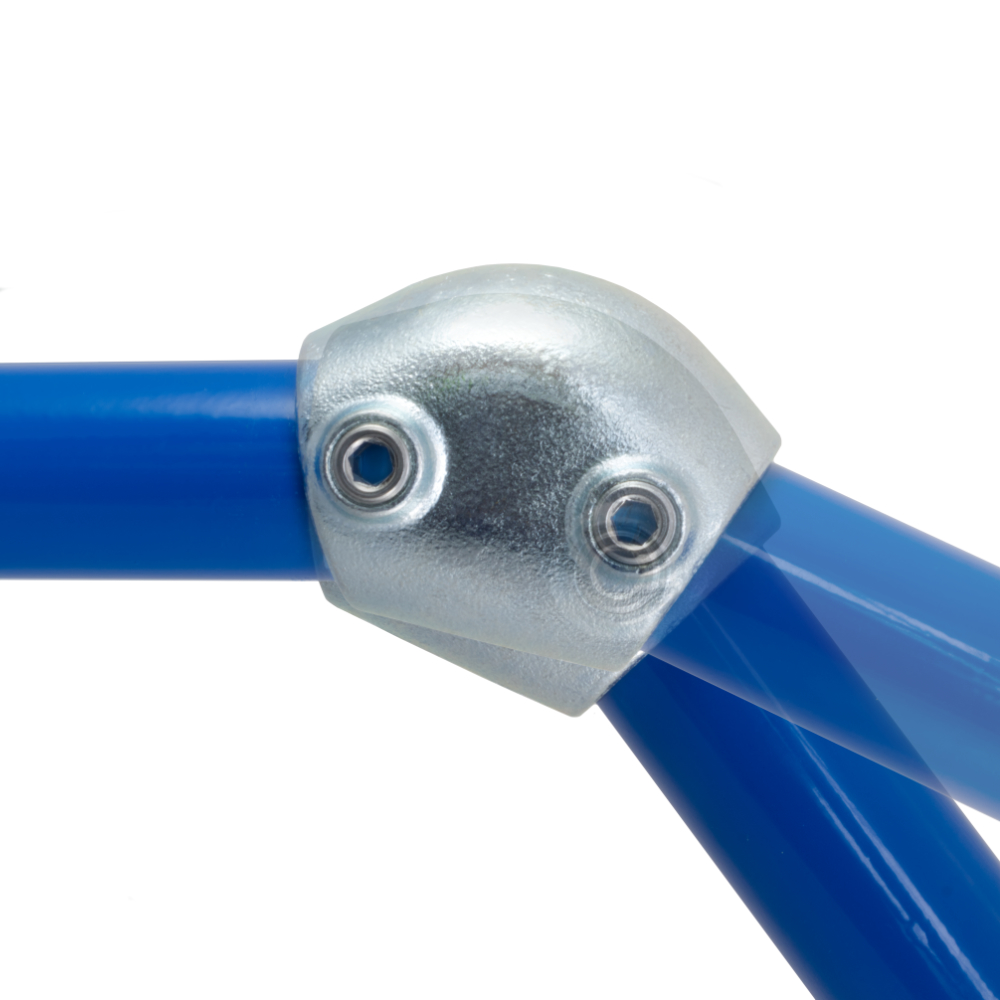

Junta de ángulo variable de 15 ° a 60 °, que a menudo se usa para unir el riel superior de la escalera para terminar los montantes.
Variable 15° to 60° angle joint, often used to join staircase top rail to end uprights.
De datos del producto y dimensiones

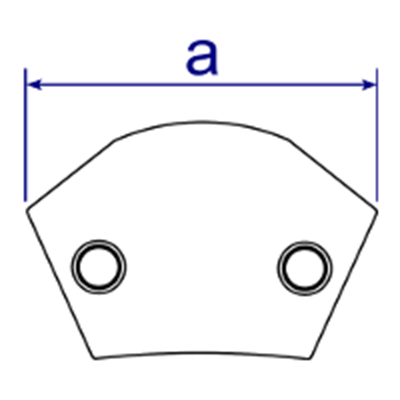

| Tamaño | a (mm) | Peso (kg) | Box Qty* | Part No |
| B34 | 91 | 0.40 | 60 | 124-B34 |
| C42 | 110 | 0.64 | 39 | 124-C42 |
| D48 | 122 | 0.67 | 30 | 124-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
